KTaO3

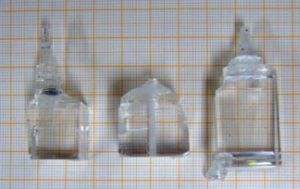

Potassium tantalate (KTaO3, KT) single crystal has a stable cubic structure and can be used to make laser modulators, digital deflectors and semiconductor devices. Because the crystal has no phase change in the temperature range from absolute zero to its melting point (1645K) , and its unit cell parameters match very well with yttrium-barium-copper-oxygen superconductors, it is promising to be used as a substrate material for superconductor films.
CasCrysTech (CCT) provides high quality Potassium tantalate (KTaO3, KT) crystal to the clients.
Uses/Applications
Be used to make laser modulators, digital deflectors and semiconductor devices.
It is promising to be used as a substrate material for superconductor films.
Features/Benefits
The crystal has no phase change in the temperature range from absolute zero to its melting point (1645K) , and its unit cell parameters match very well with yttrium-barium-copper-oxygen superconductors.
-
Molecular formula
KTaO3 (KT)
Space Group
m3m
Lattice Constant
3.984 Å
Melting Point
1352.2℃
Density
7.025 (g/cm3)
Mohs Hardness
6 (mohs)
Growth Method
Czochralski
Refractive Index
2.226@633nm, 2.152@1539nm
Thermal Expansion
4.027×10-6/K
Specific Heat (room temperature)
0.378(J/gK)
Transmission Wavelength
380~4000nm
Orientation
<100>;<110>;<111>
Dimension
20x20x0.5mm;10x10x0.5mm,5x5x0.5mm
According to customer needs, substrates with special orientation and size can be customized.
Polishing
One side or two sides, Ra< 5 Å
-
Dimension
20x20x0.5mm;10x10x0.5mm,5x5x0.5mm
Customize upon customer's requirement.
