InAs
With InAs single crystal substrate, InAsSb/In-AsPSb, InNAsSb and other heterojunction materials can be grown to produce infrared light-emitting devices with wavelengths of 2-14μm. InAs single crystal substrates can also be used to epitaxially grow AlGaSb superlattice structure materials. Mid-infrared quantum cascade laser. These infrared devices have good application prospects in gas monitoring, low-loss optical fiber communications and other fields. In addition, InAs single crystal has high electron mobility and is an ideal material for making Hall devices. As a single crystal substrate, InAs materials need to have low dislocation density, good lattice integrity, appropriate electrical parameters and high uniformity. The main growth method of InP single crystal materials is the traditional liquid-sealed Czochralski technology (LEC).

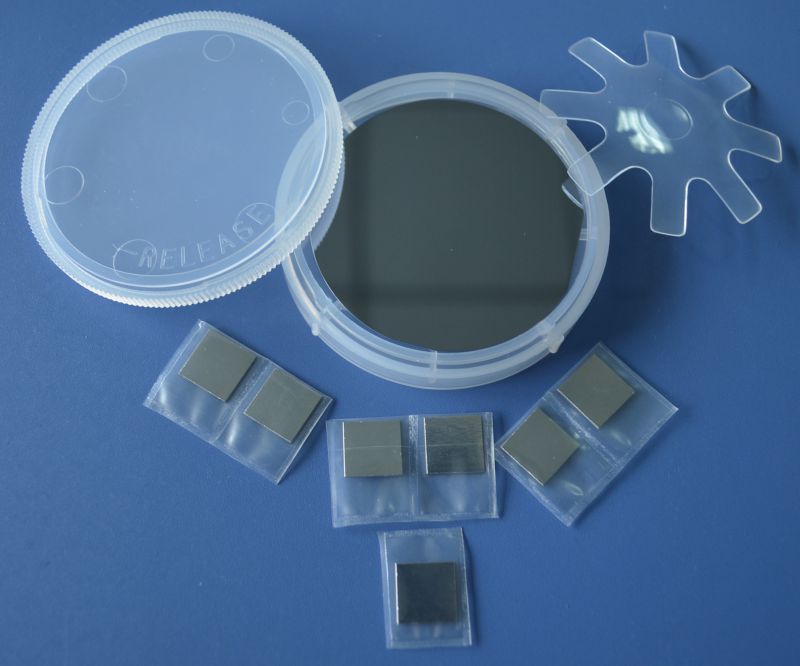

CasCrysTech (CCT) provides high quality Indium Arsenide (InAs) crystas which can be customized upon customer's requirements.
Uses/Applications
With InAs single crystal substrate, InAsSb/In-AsPSb, InNAsSb and other heterojunction materials can be grown to produce infrared light-emitting devices with wavelengths of 2-14μm.
InAs single crystal substrates can also be used to epitaxially grow AlGaSb superlattice structure materials and mid-infrared quantum cascade laser.
The infrared devices have good application prospects in gas monitoring, low-loss optical fiber communications and other fields.
Features/Benefits
InAs single crystal has high electron mobility.
-
Parameters
Single Crystal
Dopant
Conduction Type
Carrier Concentration
(cm-3)
Mobility (cm2/V.s)
Dislocation Density (cm-2)
Standard Substrate
InAs
Undoped
N
5´1016
³2´104
<5´104
Φ2″×0.5mm
Φ3″×0.5mm
InAs
Sn
N
(5-20) ´1017
>2000
<5´104
Φ2″×0.5mm
Φ3″×0.5mm
InAs
Zn
P
(1-20) ´1017
100-300
<5´104
Φ2″×0.5mm
Φ3″×0.5mm
InAs
S
N
(1-10)´1017
>2000
<5´104
Φ2″×0.5mm
Φ3″×0.5mm
Dimension
Dia50.8x0.5mm,10×10×0.5mm、10×5×0.5mm
According to customer needs, substrates with special orientation and size can be customized.
Surface Roughness
Surface roughness(Ra):<=5 Å
Atomic particle microscope ( AFM ) test report can be providedPolishing
One side or two sides
Package
Class 100 clean bag, Class 1000 super clean room
-
Dimension
Φ50.8x0.5mm,10×10×0.5mm、10×5×0.5mm
Orientation and size can be customized.
